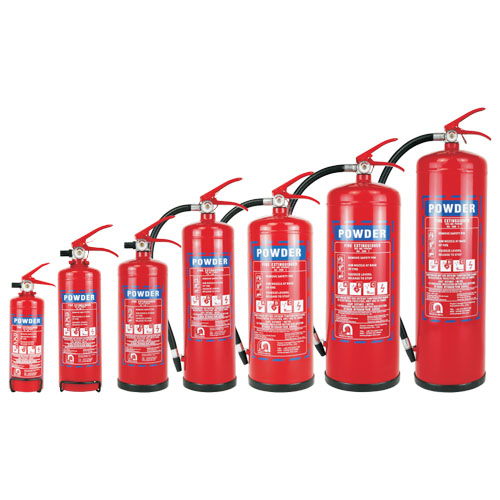

ABC Powder Fire Extinguisher

Categories: ,

Description

ABC Powder Fire Extinguisher Specification

Model PAP-1C PAP-2C PAP-3C PAP-4C PAP-6C PAP-9C PAP-12C
Agent 40% ABC powder 40% ABC powder 40% ABC powder 40% ABC powder 40% ABC powder 40% ABC powder 40% ABC powder
Propellant Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas
Charged weight 1kg 2kg 3kg 4kg 6kg 9kg 12kg
Material ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14
Valve M24×1.5 M30×1.5 M30×1.5 M30×1.5 M30×1.5 M30×1.5 M30×1.5
Working pressure 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃
Test pressure 27Bar 27Bar 27Bar 27Bar 27Bar 27Bar 27Bar
Fire rating 8A 34B 13A 89B 13A 89B 27A 144B 43A 233B 55A 233B 55A 233B
Discharge time >9’S >12’S >13’S >14’S >16’S >17’S >18’S
Range 3~5m 4~6m 4~6m 5~7m 6~8m 6~8m 6~8m
Operating -20℃~60℃ -20℃~60℃ -20℃~60℃ -20℃~60℃ -20℃~60℃ -20℃~60℃ -20℃~60℃
Extinguisher weight 2.07kg 3.62kg 4.54kg 6.29kg 9.4kg 13.18kg 16.9kg
Cylinder size ø92mm x 240mm ø110mm x301mm ø130mm x327mm ø130mm x397mm ø163mm x408mm ø183mm x470mm ø183mm x570mm
Packing size 110 x110 x320mm 140 x140x410mm 145 x145 x435mm 145 x145 x505mm 180 x180 x515mm 195 x195 x575mm 195×195 x675mm
