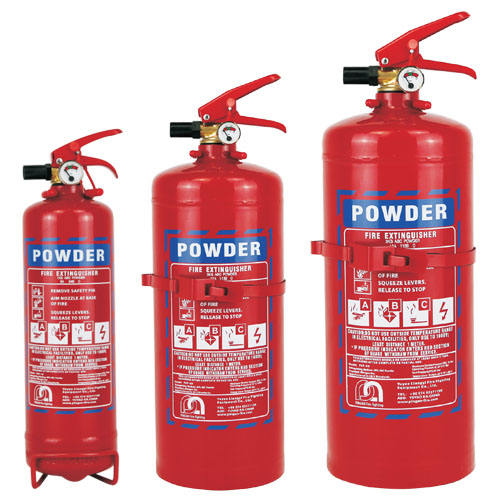

ABC Powder Fire Extinguisher

Categories: ,

Description

ABC Powder Fire Extinguisher Specification

Model LYP-01A LYP-02A LYP-03A
Agent 30% ABC Powder 30% ABC Powder 30% ABC Powder
Propellant Nitrogen gas Nitrogen gas Nitrogen gas
Charged weight 1kg 2kg 3kg
Material ST12/ST14 ST12/ST14 ST12/ST14
Valve M24×1.5 M30×1.5 M30×1.5
Working pressure 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃
Test pressure 27Bar 27Bar 27Bar
Fire rating 8A 34B 13A 89B 8A 34B
Discharge time >13’S >15’S >26’S
Range 3~5m 3~5m 4~6m
Operating -20℃~60℃ -20℃~60℃ -20℃~60℃
Extinguisher weight 3.6kg 5.1kg 5.1kg
Cylinder size ø85mm x300mm ø110mm x 350mm ø130mm x 397mm
Packing size 107 x107x358mm 140 x140x450mm 145 x145 x410mm
