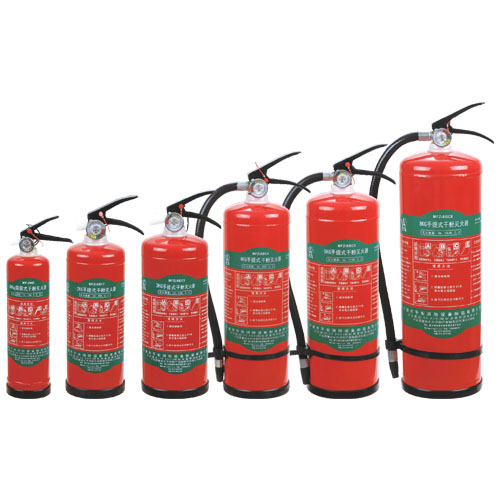

ABC Powder Fire Extinguisher

Description

ABC Powder Fire Extinguisher Specification

Model	MFJ980	MFZ/ABC2	MFZ/ABC3	MFZ/ABC4	MFZ/ABC5	MFZ/ABC8
Agent	90% ABC powder	90% ABC powder	90% ABC powder	90% ABC powder	90% ABC powder	90% ABC powder
Propellant	Nitrogen gas	Nitrogen gas	Nitrogen gas	Nitrogen gas	Nitrogen gas	Nitrogen gas
Charged weight	980g	2kg	3kg	4kg	5kg	8kg
Material	ST12	ST12	ST12	ST12	ST12	ST12
Valve	M24×1.5	M30×1.5	M30×1.5	M30×1.5	M30×1.5	M30×1.5
Working pressure	10Bar at 20℃	12Bar at 20℃	12Bar at 20℃	12Bar at 20℃	12Bar at 20℃	12Bar at 20℃
Testing pressure	21Bar	21Bar	21Bar	21Bar	21Bar	21Bar
Chinese Standard rating	1A 13B C E 5F	2A 34B C E	2A 55B C E	3A 89B C E	3A 113B C E	4A 183B C E
Europe Standard rating	8A 27B C	13A 70B C	13A 70B C	27A 113B	27A 113B	43A 183B
Discharge time	>5’S	>8’S	>13’S	>13’S	>13’S	>15’S
Range	>2m	>3m	>3.5m	>3.5m	>3.5m	>4.5m
Operating	-20℃~55℃	-20℃~55℃	-20℃~55℃	-20℃~55℃	-20℃~55℃	-20℃~55℃
Extinguisher weight	1.9kg	3.5kg	4.9kg	6.3kg	7.9kg	11.7kg
Cylinder size	ø85 x 355mm	ø110 x395mm	ø130mm x405mm	ø130mm x480mm	ø130mm x495mm	ø130mm x575mm
Packing size	450 x186x375mm(10pcs)	350 x232x392mm(6pcs)	276 x276 x410mm(4pcs)	290 x145 x490mm(2pcs)	320x160x516mm(2pcs)	345x170x592mm(2pcs)
