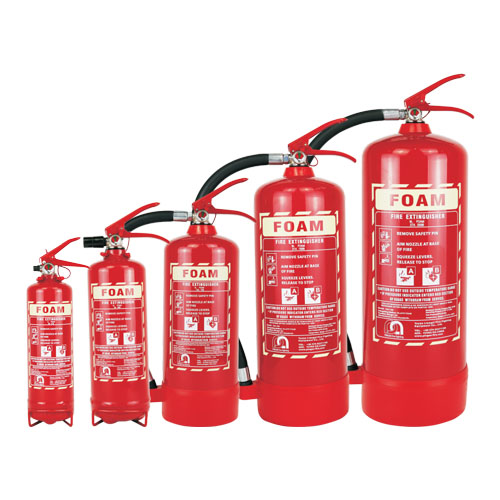

Foam Fire Extinguisher

Categories: ,

Description

Foam Fire Extinguisher Specification

Model PAF-1 PAF-2 PAF-3 PAF-6 PAF-9
Agent Premix-3%AFFF Premix-3%AFFF Premix-3%AFFF Premix-3%AFFF Premix-3%AFFF
Propellant Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas
Charged weight 1L 2L 3L 6L 9L
Material ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14
Valve M24×1.5 M30×1.5 M30×1.5 M30×1.5 M30×1.5
Working pressure 12Bar at 20℃ 12Bar at 20℃ 12Bar at 20℃ 12Bar at 20℃ 12Bar at 20℃
Test pressure 30Bar 30Bar 30Bar 30Bar 30Bar
Fire rating 5A 21B 8A 55B 13A 70B 21A 183B 27A 233B
Discharge time >10’S >10’S >12’S >26’S >38’S
Range 3~5m 3~5m 4~6m 3~5m 6~8m
Operating 5℃~60℃ 5℃~60℃ 5℃~60℃ 5℃~60℃ 5℃~60℃
Extinguisher weight 2kg 3.6kg 5.5kg 10.1kg 14.6kg
Cylinder size ø85mm x 267mm ø110mm x316mm ø140mm x350mm ø161mm x 434mm ø183mm x496mm
Packing size 107 x107x358mm 140 x140 x420mm 165×165 x455mm 178×178 x550mm 195 x195 x605mm
