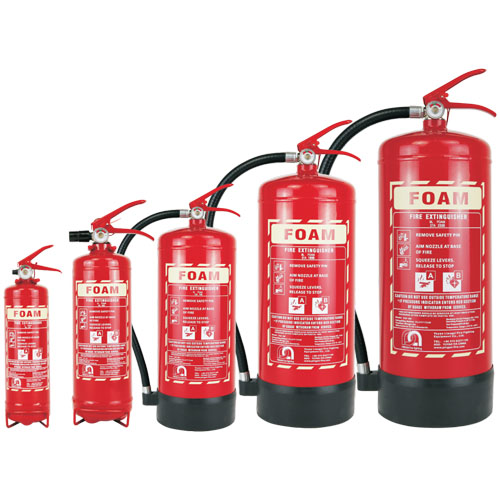

Foam Fire Extinguisher

Categories: ,

Description

Foam Fire Extinguisher Specification

Model PAF-1D PAF-2D PAF-3D PAF-6D PAF-9D
Agent Premix-3%AFFF Premix-3%AFFF Premix-3%AFFF Premix-3%AFFF Premix-3%AFFF
Propellant Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas
Charged weight 1L 2L 3L 6L 9L
Volume 1.3L 2.3L 4.6L 7.0L 10.4L
Material ST12 ST12 ST12 ST12 ST12
Valve M24×1.5 M30×1.5 M30×1.5 M30×1.5 M30×1.5
Working pressure 12Bar at 20℃ 12Bar at 20℃ 12Bar at 20℃ 12Bar at 20℃ 14Bar at 20℃
Test pressure 30Bar 30Bar 30Bar 30Bar 30Bar
Fire rating 5A 21B 8A 55B 13A 70B 21A 183B 27A 233B
Discharge time >9’S >12’S >14’S >26’S >38’S
Range 3~5m 4~6m 5~7m 5~8m 6~8m
Operating 5℃~60℃ -20℃~60℃ -20℃~60℃ 5℃~60℃ 5℃~60℃
Extinguisher weight 2.2kg 3.8kg 5.8kg 9.57kg 13.67kg
Cylinder size ø92mm x 241mm ø110mm x300mm ø130mm x320mm ø163mm x 401mm ø183mm x468mm
Packing size 110 x110 x330mm 140 x140 x405mm 145 x145 x425mm 180 x180 x515mm 195 x195 x575mm
