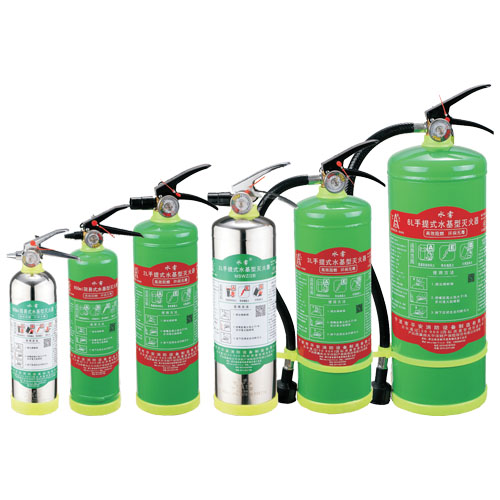

Water Additive Mist Portable Fire Extinguisher

Description

Water Additive Mist Portable Fire Extinguisher Specification

Model	MSWZ/950	MSWZ/950B	MSWZ/2	MSWZ/2B	MSWZ/3	MSWZ/6
Agent	Eco-friendly chemical	Eco-friendly chemical	Eco-friendly chemical	Eco-friendly chemical	Eco-friendly chemical	Eco-friendly chemical
Propellant	Nitrogen gas	Nitrogen gas	Nitrogen gas	Nitrogen gas	Nitrogen gas	Nitrogen gas
Charged weight	950ml	950ml	2L	2L	3L	6L
Volume	1.2L	1.2L	2.6L	2.7L	4.0L	7.8L
Material	ST12	Stainless steel	ST12	Stainless steel	ST12	ST12
Working pressure	10Bar at 20℃	10Bar at 20℃	12Bar at 20℃	12Bar at 20℃	12Bar at 20℃	12Bar at 20℃
Chinese Standard rating	0.5A 13B 5F E	0.5A 13B 5F E	1A 55B E	1A 55B E	1A 55B E	2A 89B E
Europe Standard rating	5A 13B C	5A 13B C	8A 34B C	8A 34B C	13A 55B C	21A 133B c
Discharge time	>5’S	>5’S	>15’S	>15’S	>15’S	>15’S
Range	>2m	>2m	>3m	>3m	>3m	>3m
Operating	0℃~55℃/-20℃~55℃	0℃~55℃/-20℃~55℃	0℃~55℃/-20℃~55℃	0℃~55℃/-20℃~55℃	0℃~55℃/-10℃~55℃/-20℃~55℃	0℃~55℃/-10℃~55℃/-20℃~55℃
Extinguisher weight	1.9kg	1.6kg	3.7kg	3.2kg	5.1kg	5.5kg
Cylinder size	ø85mm x 293mm	ø85mm x 256mm	ø110mm x343mm	ø108mm x345mm	ø130mm x376mm	ø163mm x451mm
Packing size	107 x107 x370mm	107 x107 x358mm	125 x125 x425mm	125 x125 x425mm	290 x145 x470mm(2pcs)	340 x170 x550mm(2pcs)
