Description

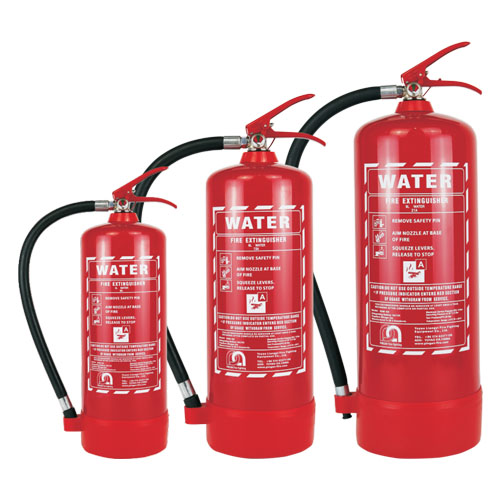

Water Fire Extinguisher Specification
| Model |
PAW-3 |
PAW-6 |
PAW-9 |
| Agent |
Water |
Water |
Water |
| Propellant |
Nitrogen gas |
Nitrogen gas |
Nitrogen gas |
| Charged weight |
3L |
6L |
9L |
| Material |
ST12/ST14 |
ST12/ST14 |
ST12/ST14 |
| Valve |
M30×1.5 |
M30×1.5 |
M30×1.5 |
| Working pressure |
12Bar at 20℃ |
12Bar at 20℃ |
12Bar at 20℃ |
| Test pressure |
30Bar |
30Bar |
30Bar |
| Fire rating |
8A |
13A |
21A |
| Discharge time |
>12’S |
>32’S |
>48’S |
| Range |
4~6m |
5~8m |
6~8m |
| Operating |
5℃~60℃ |
5℃~60℃ |
5℃~60℃ |
| Extinguisher weight |
5.5kg |
10.1kg |
14.6kg |
| Cylinder size |
ø140mm x350mm |
ø161mm x434mm |
ø183mm x496mm |
| Packing size |
165×165 x455mm |
178×178 x550mm |
195 x195 x605mm |
