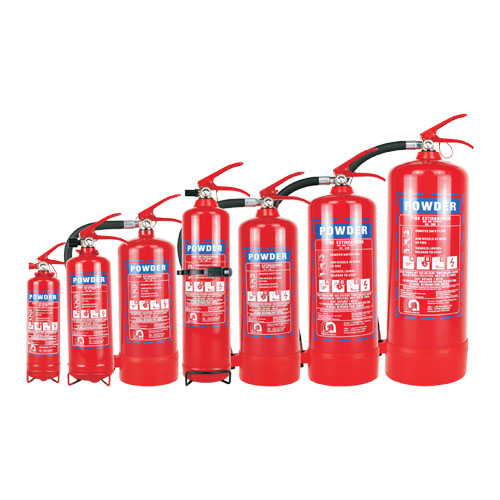

ABC Powder Fire Extinguisher

Categories: ,

Description

ABC Powder Fire Extinguisher Specification

Model PAP-1 PAP-2 PAP-3S PAP-3 PAP-4 PAP-6 PAP-9 PAP-12
Agent 40% ABC powder 40% ABC powder 40% ABC powder 40% ABC powder 40% ABC powder 40% ABC powder 40% ABC powder 40% ABC powder
Propellant Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas Nitrogen gas
Charged weight 1kg 2kg 3kg 3kg 4kg 6kg 9kg 12kg
Material ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14 ST12/ST14
Valve M24×1.5 M30×1.5 M30×1.5 M30×1.5 M30×1.5 M30×1.5 M30×1.5 M30×1.5
Working pressure 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃ 14Bar at 20℃
Test pressure 30Bar 30Bar 30Bar 30Bar 30Bar 30Bar 30Bar 30Bar
Fire rating 8A 34B 13A 89B 13A 89B 13A 89B 27A 144B 43A 233B 55A 233B 55A 233B
Discharge time >9’S >9’S >12’S >12’S >14’S >16’S >17’S >20’S
Range 3~5m 3~5m 4~6m 4~6m 5~7m 6~8m 6~8m 6~8m
Operating -30℃~60℃ -30℃~60℃ -30℃~60℃ -30℃~60℃ -30℃~60℃ -30℃~60℃ -30℃~60℃ -30℃~60℃
Extinguisher weight 2.2kg 3kg 5.6kg 5.9kg 7.1kg 9.9kg 14.3kg 17.5kg
Cylinder size ø85mm x 267mm ø110mm x316mm ø110mm x408mm ø140mm x350mm ø140mm x391mm ø161mm x434mm ø183mm x496mm ø183mm x650mm
Packing size 107 x107 x358mm 140 x140 x420mm 135×135 x500mm 165×165 x455mm 165 x165 x495mm 178×178 x550mm 195 x195 x605mm 195 x195 x670mm
