Description

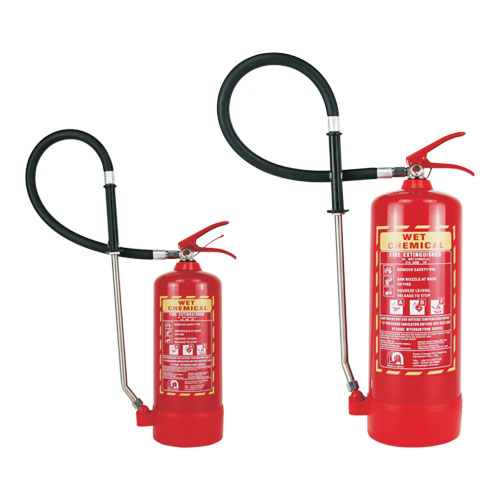

Wet Chemical Fire Extinguisher Specification
| Model |
PAWC-3 |
PAWC-6 |
| Agent |
Premix- wet chemical |
Premix- wet chemical |
| Propellant |
Nitrogen gas |
Nitrogen gas |
| Charged weight |
3L |
6L |
| Material |
ST12/ST14 |
ST12/ST14 |
| Valve |
M30×1.5 |
M30×1.5 |
| Working pressure |
12Bar at 20℃ |
12Bar at 20℃ |
| Test pressure |
30Bar |
30Bar |
| Fire rating |
8A 40F |
13A 75F |
| Discharge time |
>15’S |
>26’S |
| Range |
3~6m |
5~8m |
| Operating |
5℃~60℃ |
5℃~60℃ |
| Extinguisher weight |
5.5kg |
10.62kg |
| Cylinder size |
ø140mm x350mm |
ø161mm x434mm |
| Packing size |
165×165 x455mm |
178×178 x550mm |
