Description

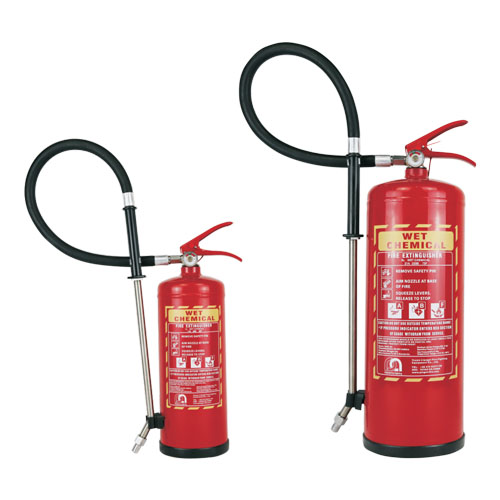

Wet Chemical Fire Extinguisher Specification
| Model |
PAWC-3C |
PAWC-6C |
| Agent |
Premix- wet chemical |
Premix- wet chemical |
| Propellant |
Nitrogen gas |
Nitrogen gas |
| Charged weight |
3L |
6L |
| Material |
ST12/ST14 |
ST12/ST14 |
| Valve |
M30×1.5 |
M30×1.5 |
| Working pressure |
12Bar at 20℃ |
12Bar at 20℃ |
| Test pressure |
27Bar |
27Bar |
| Fire rating |
8A 40F |
13A 75F |
| Discharge time |
>15’S |
>26’S |
| Range |
3~6m |
5~8m |
| Operating |
5℃~60℃ |
5℃~60℃ |
| Extinguisher weight |
5.5kg |
10.62kg |
| Cylinder size |
ø130mm x344mm |
ø163mm x448mm |
| Packing size |
145 x145 x550mm |
180 x180 x560mm |
